Technical Documentation

What is Technical Documentation?

Technical documentation is the written record of how a production or installation actually works — documentation Beatrox produces from Portland, Oregon for events and installations nationwide: system diagrams, signal flow, equipment schedules, operating procedures, maintenance guides, and as-built records. It's what allows someone who didn't build the system to run it, fix it, or rebuild it. You need technical documentation whenever a system outlives the crew that installed it — a touring show with rotating technicians, a permanent installation maintained by in-house staff, or a brand activation that will be rebuilt in the next city. Without documentation, every handover is a game of telephone and every fault becomes a forensic investigation. Documentation also protects the production itself. When the show manual defines power-up sequences, fallback procedures, and who owns which system, show day stops depending on any single person's memory. That's not bureaucracy — that's reliability.

Common Applications

What BEATROX Provides

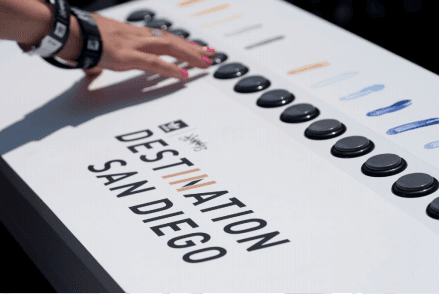

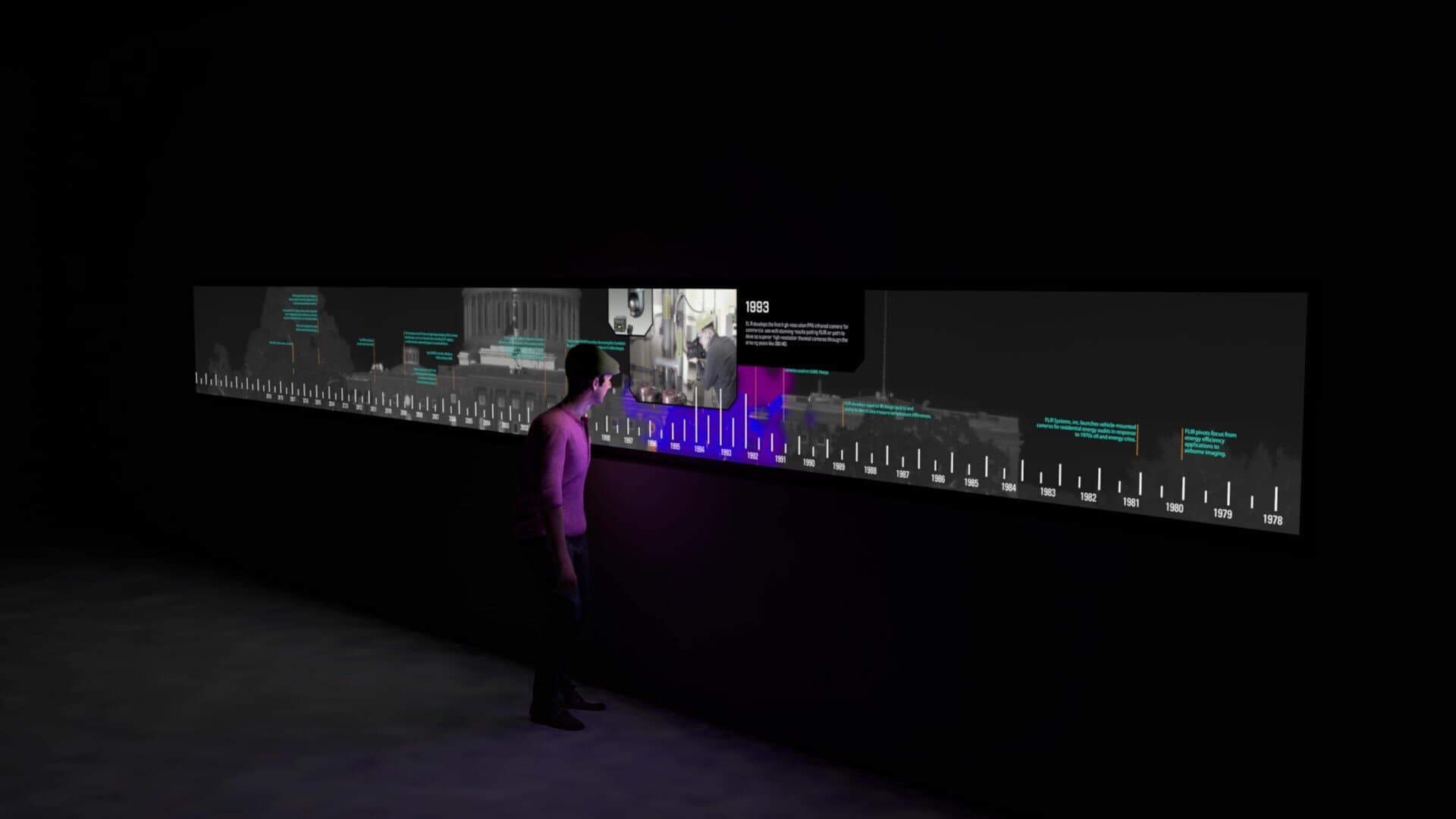

BEATROX produces documentation as a deliverable, not an afterthought: system and signal flow diagrams, cable and patching schedules, equipment inventories, step-by-step operating manuals, maintenance and service guides, and as-built drawing sets that record what was actually installed. Everything is written for the person who will use it — clear enough for a venue technician, precise enough for an engineer. Our documentation has kept real systems running beyond opening night. The FLIR Interactive History Wall — a permanent installation at FLIR's Washington DC headquarters combining ultra wide-format displays, LIDAR sensors, AI computer vision, and a media server — was delivered with the operating and maintenance documentation a corporate facilities team needs to own it long-term. For Netflix's El Camino Comic-Con exhibition in New York, complete technical records kept a multi-system exhibition build operable across the run of the show. And on Destination for Journey's x Adidas in San Diego, we documented a one-of-a-kind system — a 40-foot canvas driven by a robotic paint distribution device with custom Arduino firmware, relay-driven mechanical valves, and TouchDesigner integration — so the custom controller and its procedures could be operated and serviced by the event team.

How We Work

1. 01System Capture — We document every system as designed: diagrams, schedules, and inventories
2. 02Procedure Writing — Operating, power-up, show, and emergency procedures are drafted
3. 03On-Site Verification — Documentation is checked against the real installation during commissioning
4. 04As-Built Update — Drawings and records are revised to match exactly what was built
5. 05Handover & Training — We walk the receiving team through the documents and the system
6. 06Living Records — Documentation is maintained and reissued as the system evolves
